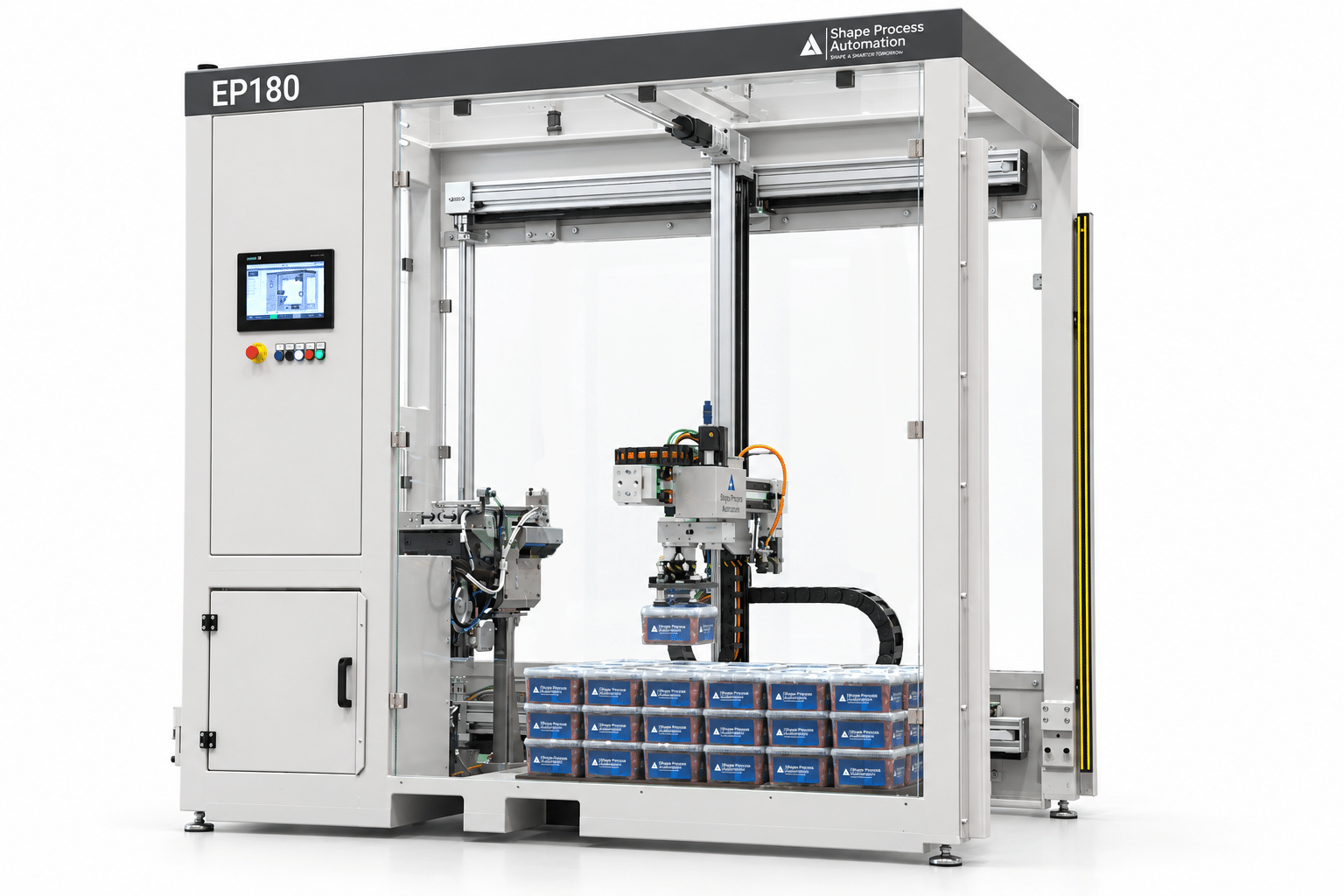

EP180 – Compact Automatic Palletizer
Automate your palletizing process without making the solution more complicated than it needs to be.
EP180 is a compact, fully automatic palletizer developed for repeatable, long-term industrial operation. It receives products from the infeed conveyor and places them onto pallets with consistent precision – shift after shift.
Built on a standardized platform, EP180 offers clearly defined functionality, straightforward implementation and predictable performance. It is a reliable first step for companies looking to reduce manual handling and create a more stable production flow.
Compact, autonomous and ready for production
EP180 operates fully automatically without the use of an industrial robot. This makes it a compact and cost-effective solution for companies with clearly defined and repeatable palletizing requirements.
EP180 can help you:
- Reduce manual and repetitive lifting
- Create a more stable and reliable production flow
- Make efficient use of available floor space
- Simplify implementation and integration
- Build a strong foundation for further automation
One standardized platform – multiple pallet formats
EP180 is built on a proven standard platform and can be supplied in a predefined configuration or complemented with selected options.
This provides a clearly defined scope, controlled implementation and predictable performance. The platform can be configured to suit your products, pallet formats and production flow without compromising system stability.
EP180 can be configured for:
- EUR pallets: 1,200 × 800 mm
- SEA pallets: 1,200 × 1,000 mm
Standard configuration
The standard EP180 configuration includes:
- Automatic palletizing
- Infeed conveyor
- Standard gripper or vacuum tool
- Predefined pallet pattern
- Safety system with light curtains
- Integrated Siemens control system
- CE documentation
Options and extended capabilities
EP180 can be complemented with:
- Extended pallet capacity and pallet conveyor
- Side- or end-mounted pallet magazine
- Automatic slip-sheet handling
- Customized pallet patterns
- Special tooling
- Depalletizing

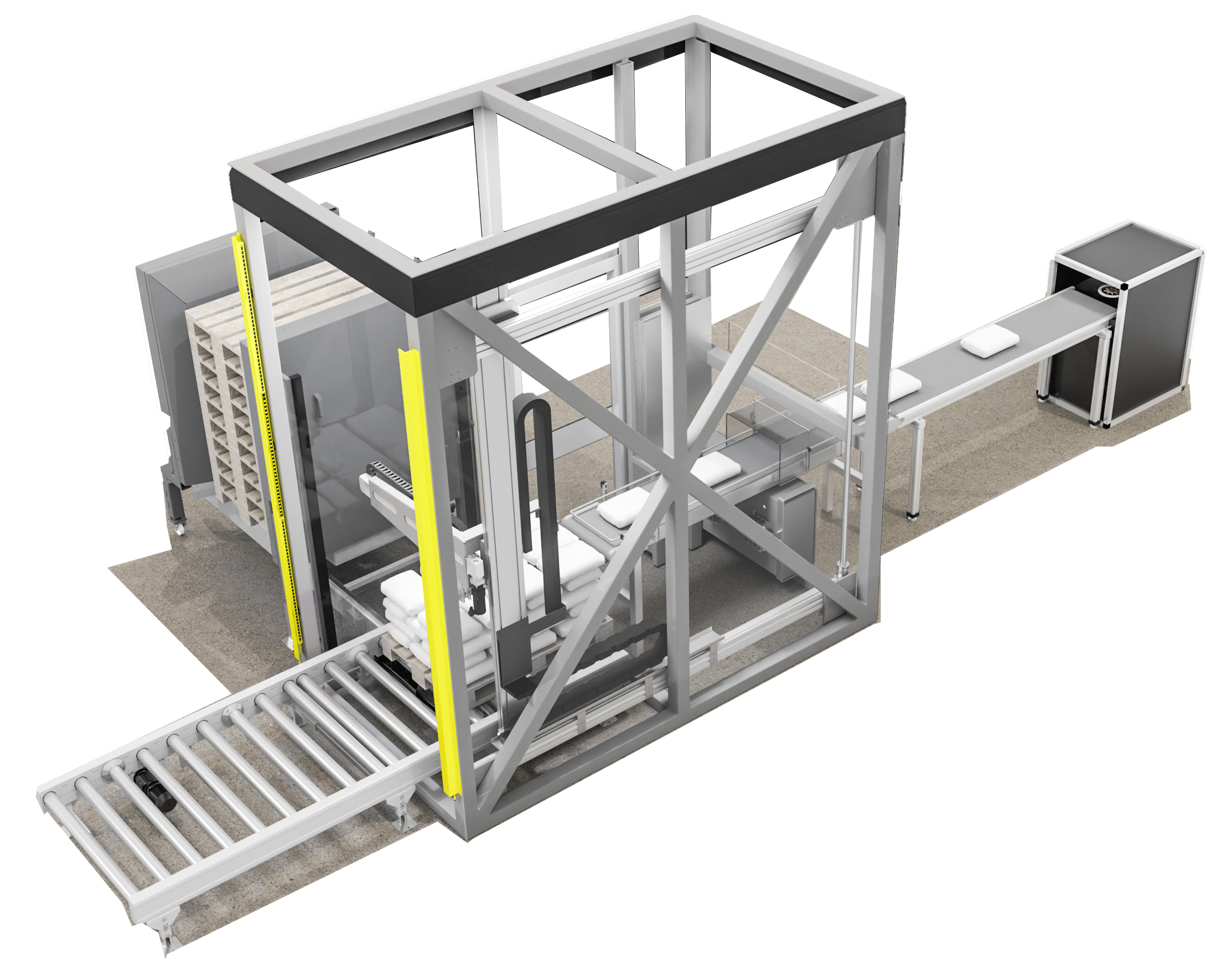

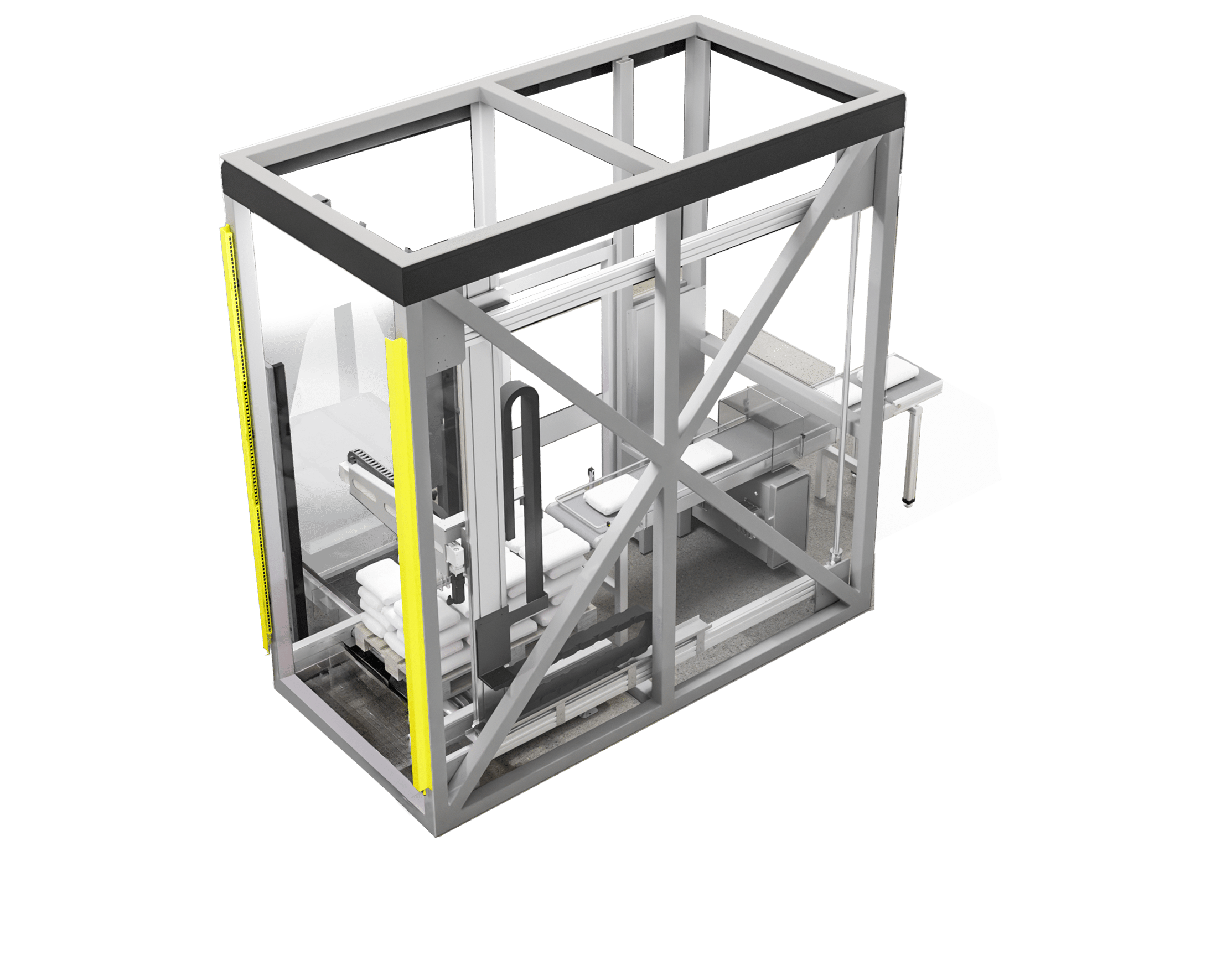

- XL configuration for palletizing up to 2,400 mm
- Installation and commissioning
All options are developed within the same technical platform and integrated without compromising system stability or performance.
See EP180 in action
See how EP180 receives products from the infeed conveyor and palletizes them automatically with consistent and repeatable precision.
Is EP180 the right solution for you?
EP180 is designed for companies with a clearly defined and repeatable palletizing process that want to automate without investing in a more extensive robot cell.
EP180 is particularly suitable if you are looking for:
- A compact installation
- Repeatable and consistent palletizing
- A standardized system
- Reduced manual handling
- A clear and reliable path into automation
Product specifications
| Capacity | < 10 picks/min |
| Uptime | 96 % |
| Material | Powder coated |
| Pallet magazine | Optional side/end |
| Portal – Gantry | Shape |
Technical specifications
| Current | 16 A |
| Air | 500 L/min |
| Width | 1 500 mm |
| Length | 2 515 mm |
| Height | 1960 mm |
Options
| PLC | Siemens |
| Classification | Selected zone |
| Service agreement | Annually |
| Distance support | Yes |
| Training |
Yes |
| Commissioning | Custom |
| Movable | Yes |
Need greater flexibility?

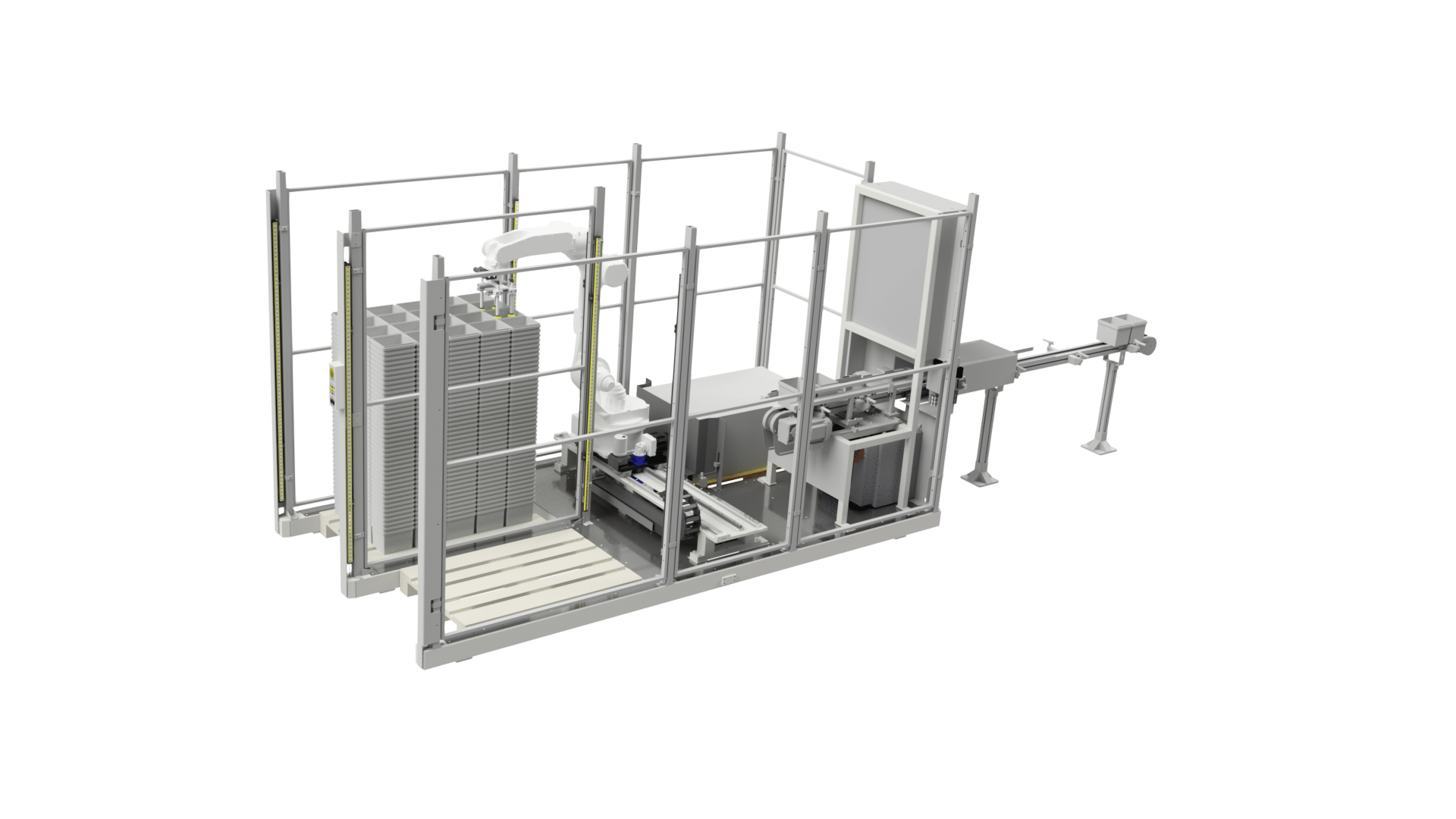

Discover our robot-based EP100 palletizer
If your production involves a wider variety of products, more advanced pallet patterns or palletizing to two pallet positions, EP100 may be the better choice.
EP100 is a complete, stand-alone robot cell built on a standardized foundation. It can be adapted to your products, production flow and layout requirements.
EP100 is ideal when you need:
- Greater product variety
- More advanced pallet patterns
- Palletizing to two pallet positions
- Flexible tooling configurations
- A robot-based solution that can be adapted to your process
Download the brochure
Get a complete overview of EP180, including its standard configuration, available options and technical specifications. The brochure also introduces EP100, our flexible robot-based palletizing solution.
Ready to take the first step?
Tell us about your products, pallet formats and production flow. Together, we can determine whether EP180 is the right solution for your operation – or whether the robot-based EP100 is a better fit.
